Wired 17×48-inch tethered Flat Panel Detector YSFPD-V1748V

Model: YSFPD-V1748V

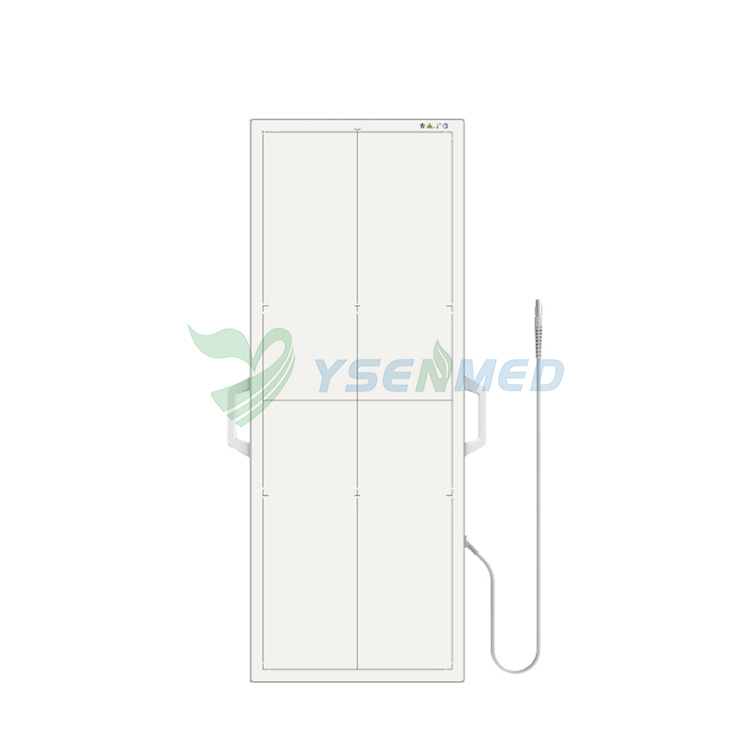

YSFPD-V1748V is a 17×48-inch, tethered cassette-sized FPD for radiographic imaging. It features a 139 μm pixel pitch with GOS, and with a reliable AED enables a smart workflow.
  • ModelYSFPD-V1748V
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Wired Flat Panel Detector
    Share:
    Description Get Price Review


    YSFPD-V1748V is a 17×48-inch, tethered cassette-sized FPD for radiographic imaging. It features a 139 μm pixel pitch with GOS, and with a reliable AED enables a smart workflow.


    Features
    139 μm pixel pitch, with 16 bit ADC for more image details
    Stable iSync+ Automatic Exposure Detection (AED)
    Supports a fast and efficient workflow
    Completed the full spine image acquisition in a single exposure
    Removable handle



    YSFPD-V1748V
    Detector Technology   Amorphous Silicon  Trigger Mode AED (optional) / Software
    Scintillator GOS Preview Image Time (s) 5
    Active Area (inch) 17 × 48 Full Image Time (s) 8
    Pixel Matrix 3072 × 8704 Dimension (mm) 1269 × 484 × 24
    Pixel Pitch (μm)  139 Weight (kg) 20
    Spatial Resolution (lp/mm) 3.6 Operating Temperature (℃) 5~35
    AD Conversion (bit) 16 Storage & Transport
    Temperature with Package (℃)
    -10~55
    Power Dissipation (W) 27(Without battery) Operating Humidity (% RH) 30~80 (Non-Condensing)
    Data Interface GigE Storage & Transport Humidity with Package (% RH) 10~90 (Non-Condensing)
