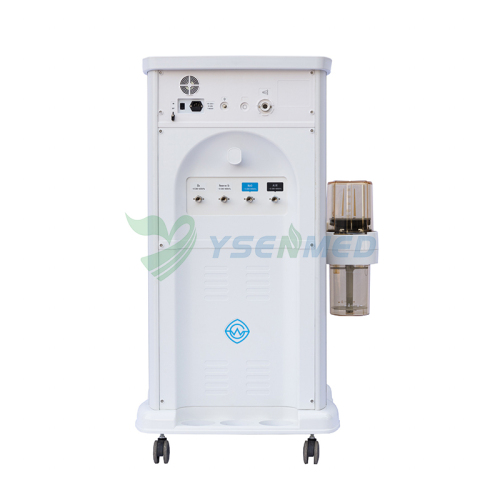

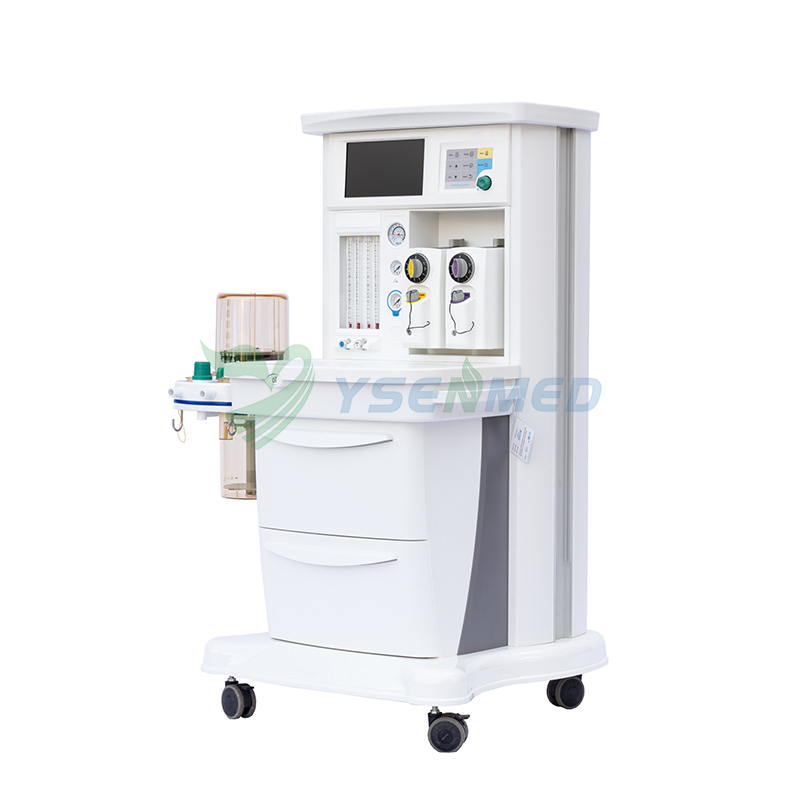

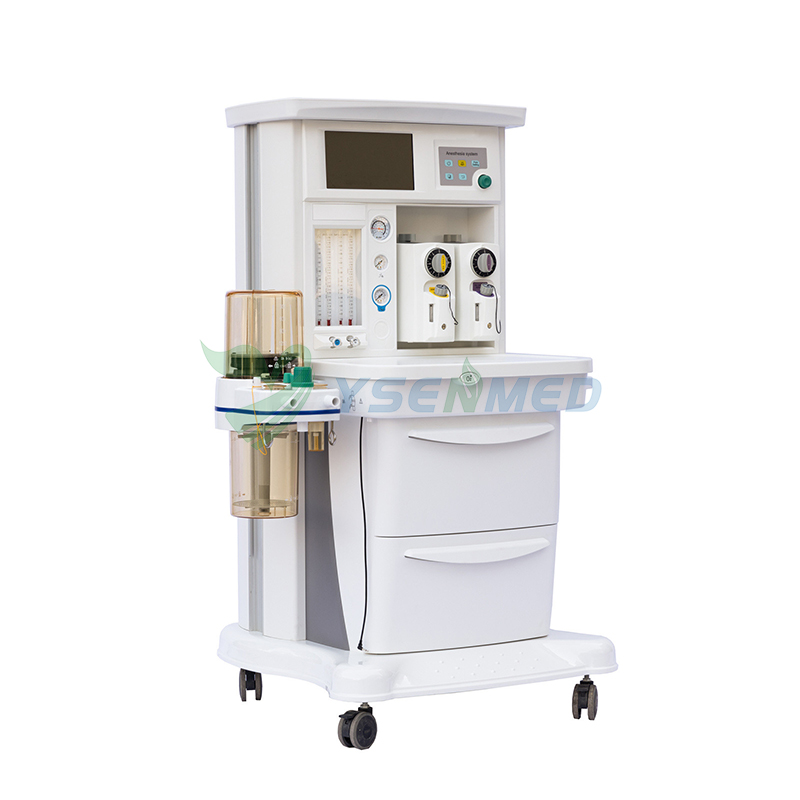

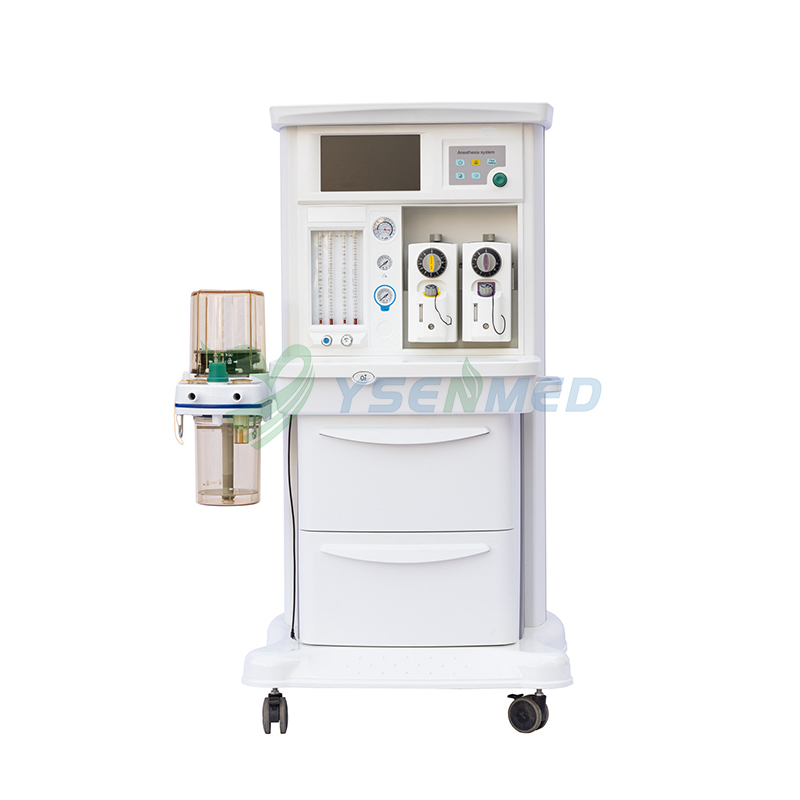

YSAV6301 Anesthesia machine

Anesthesia System

Model：YSAV6301

Features:

1. Integrated breathing circuit with APL valve, excellent tightness.

2. Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.

3. Applied with 1 high-precision vaporizers. (Selectatec).

4. 10.1 inch screen.

5. Real-time detection for loops, Paw, BPM, VT and compliance.

6. Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.

7. ACGO available to connect with T/Bain circuit for open operation (Optional).

Technique Specifications

Physical Specifications

Dimensions: 70*85*140cm

Weight: 65kg

Casters: Front wheels with lock

Screen: 10.1 inch LCD screen

Display graphic: Waveforms of P-T,F-T,V-T

Working specifications

Power: AC 110V-240V,50Hz/60Hz

Battery Power: ≥180 mins

Pipeline Supply

Gas configuration: O2,N2O,Air(Optional)

Pipeline input range: 280-600Kpa(40-85psi)

Ventilator Specifications

Applications

Patient range: Adult/Pediatric

Modes of Ventilation

VCV: Volume Control Ventilation

SIMV: Synchronized Intermittent Mandatory Ventilation

Manual

STAND-BY

A/C: Assist/Control

Ventilator Parameter

Working type: Electronic control, pneumatic driven

Tidal Volume range: 20-1500ml

Pressure range: 5-60cmH2O

Rispriation rate range: 1-100bpm(1-40bpm under SIMV)

I:E range: 4:1-1:8

Ptrigger range: -20-0cmH2O

Minute volume range: ＞18L/Min

SIGH range: 0-5/100

System Standard

Hypoxic guard system: N2O cut-off Valve, O2 concentration＞25%

Safety valve：＜12.5Kpa

O2 Flush: 25-75L/min

Flow meter: 4 tubes, cascade 0-15L/min O2, 0-15L/min N2O, 0-15L/min air (Optional)

Volume of CO2 absorber: 2L

Vaporizer: 1 Selectetac, maximum 2 mounts (Isoflurane/Enflurane/Sevoflurane/Halothane)

Monitoring： VT, MV, Pmax, Pmean, Lung compliance,Freq, FiO2(optional), ETCO2(optional)

Alarm Limits

Audio/Visual: No tidal volume, MV, Paw, Fio2(optional),Air failure, AC power failure, Battery low

Pre-setting functiuons

Language: CHJINESE, ENGLISH etc.

Self-test: Automatic

Optional features

1. ACGO: Auxiliary Common Gas Outlet

2. Yoke system(Pin-index): Support 11L cylinder O2,N2O

3. AGSS: Anesthetic Gas Scavenging Systems
