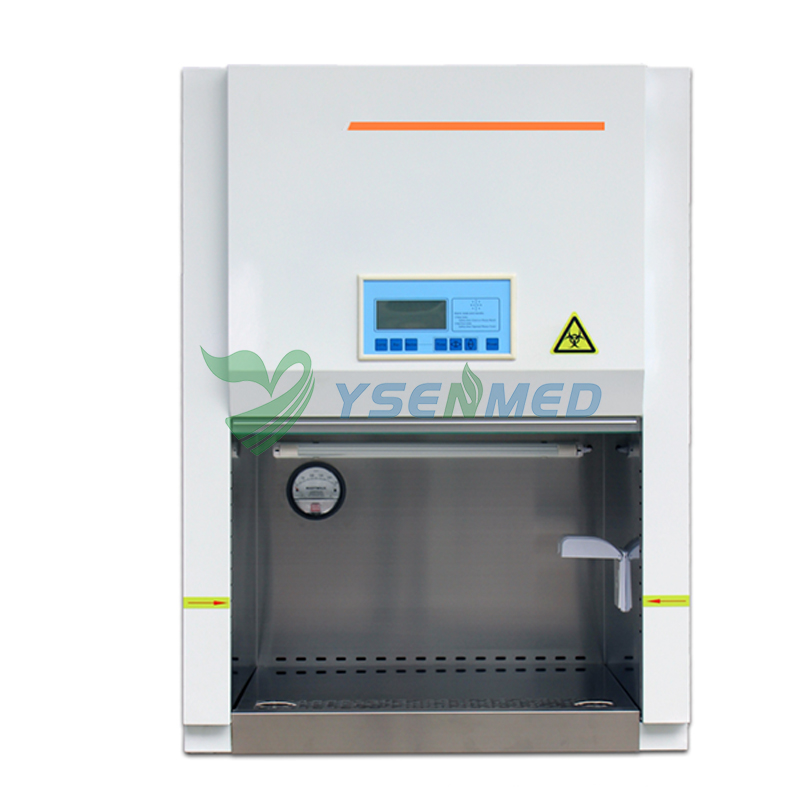

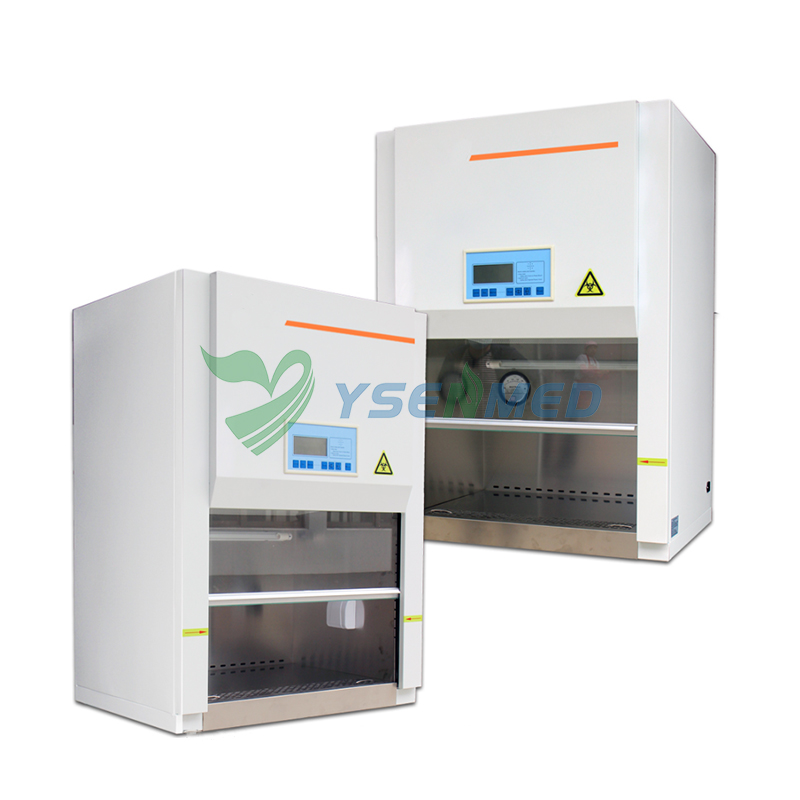

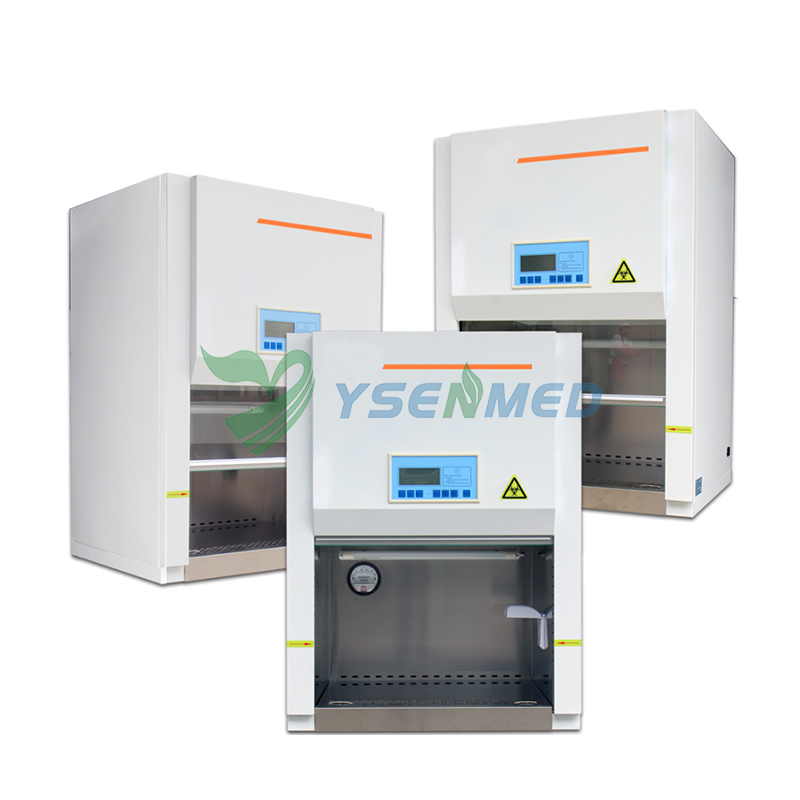

All Steel 30% Air Exhaust Desktop Class II Biosafety Cabinet

Model:YSBSC-700IIA2-EP

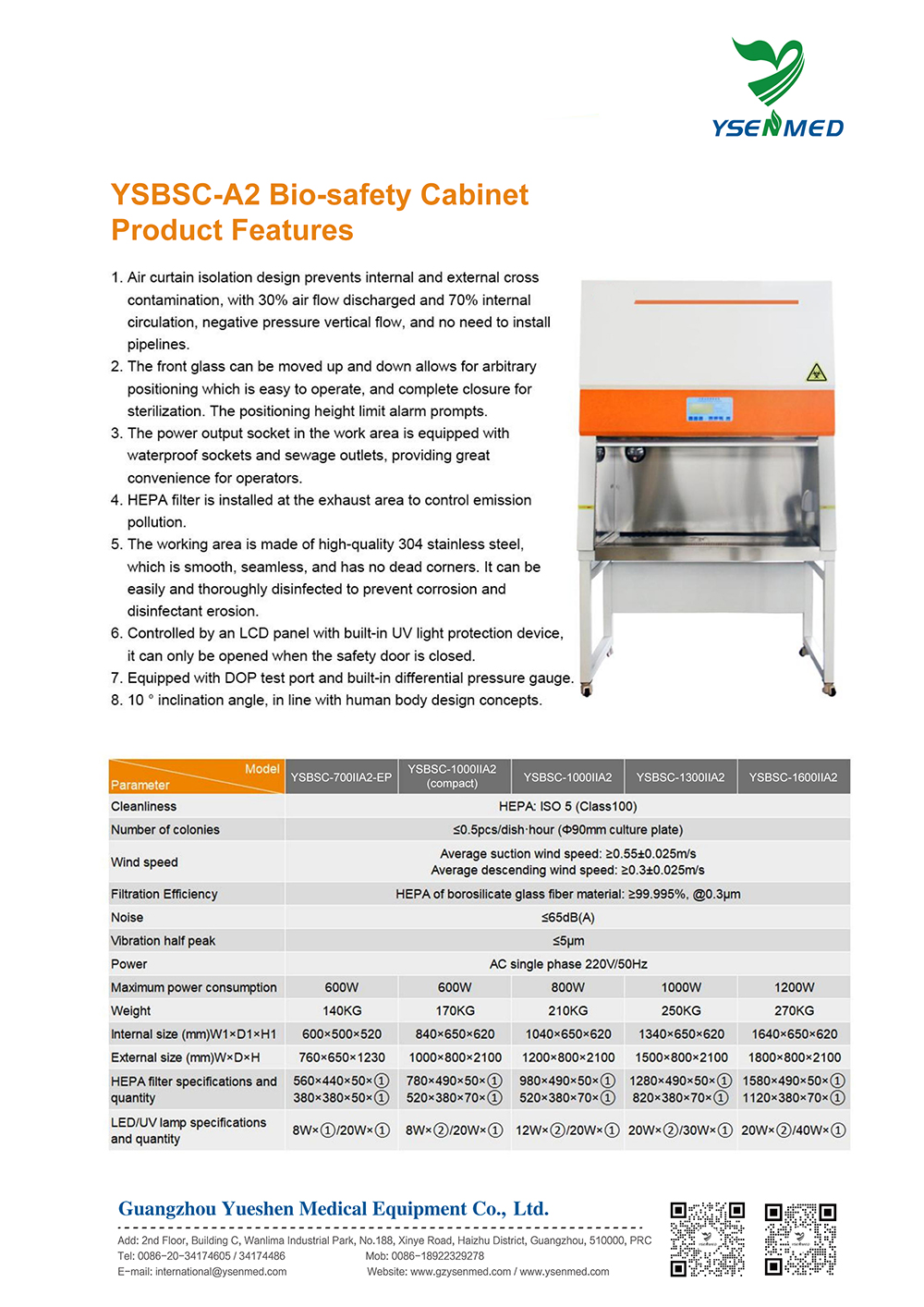

YSBSC-700IIA2-EP Biological Safety Cabinet product features 1. Air curtain isolation design prevents internal and external cross-contamination, 30% of the air flow is discharged outside and 70% of the internal circulation, negative pressure vertical laminar flow, no need to install pipes. 2. The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely
product features
1.Air curtain isolation design prevents internal and external cross-contamination, 30% of the air flow is discharged outside and 70% of the internal circulation, negative pressure vertical laminar flow, no need to install pipes.
2. The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts.
3. The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator
4 A special filter is installed at the exhaust air to control emission pollution.
5.The working environment is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends. It can be easily and thoroughly disinfected and can prevent corrosion by corrosive agents and disinfectants.
6.It adopts LED LCD panel control and built-in UV lamp protection device, which can only be opened when the safety door is closed.
7.With DOP detection port, built-in differential pressure gauge.
Technical Parameters
Model
Spec. YSBSC-700IIA2-EP YSBSC-1000IIA2
(compact) YSBSC-1000IIA2 YSBSC-1300IIA2 YSBSC-1600IIA2
Cleanliness HEPA: ISO 5 (Class100)
Number of colonies ≤0.5pcs/dish·hour (Φ90mm culture plate)
Wind speed Average suction wind speed: ≥0.55±0.025m/s
Average descending wind speed: ≥0.3±0.025m/s
Filtration Efficiency HEPA of borosilicate glass fiber material: ≥99.995%, @0.3μm
Noise ≤65dB(A)
Vibration half peak ≤5μm
Power AC single phase 220V/50Hz
Maximum power consumption 600W 600W 800W 1000W 1200W
Weight 140KG 170KG 210KG 250KG 270KG
Internal size (mm)
W1×D1×H1 600×570×520 840×650×620 1040×650×620 1340×650×620 1640×650×620
External size (mm)
W×D×H 760×700×1230 1000×800×2100 1200×800×2100 1500×800×2100 1800×800×2100
HEPA filter specifications and quantity 560×440×50×①
380×380×50×① 780×490×50×①
520×380×70×① 980×490×50×①
520×380×70×① 1280×490×50×①
820×380×70×① 1580×490×50×①
1120×380×70×①
