Digital Intraoral Sensor Imaging System YSDEN-DR530

Model: YSDEN-DR530
  • ModelYSDEN-DR530
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Dental X-ray Unit
    Share:
    Description Get Price Review

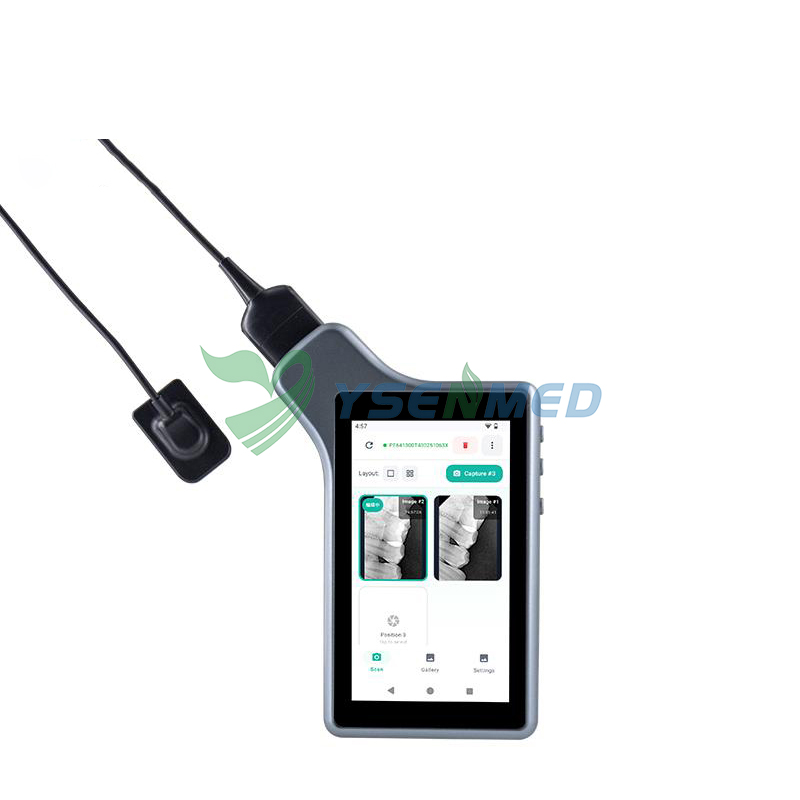

    YSDEN-DR530/YSDEN-DR550 Portable Intraoral Imaging System

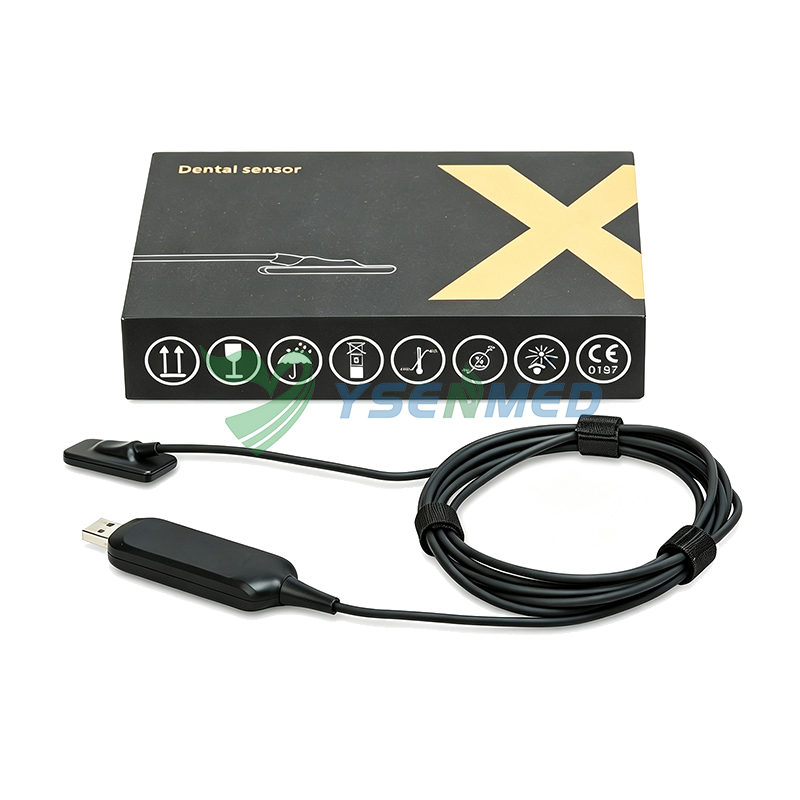

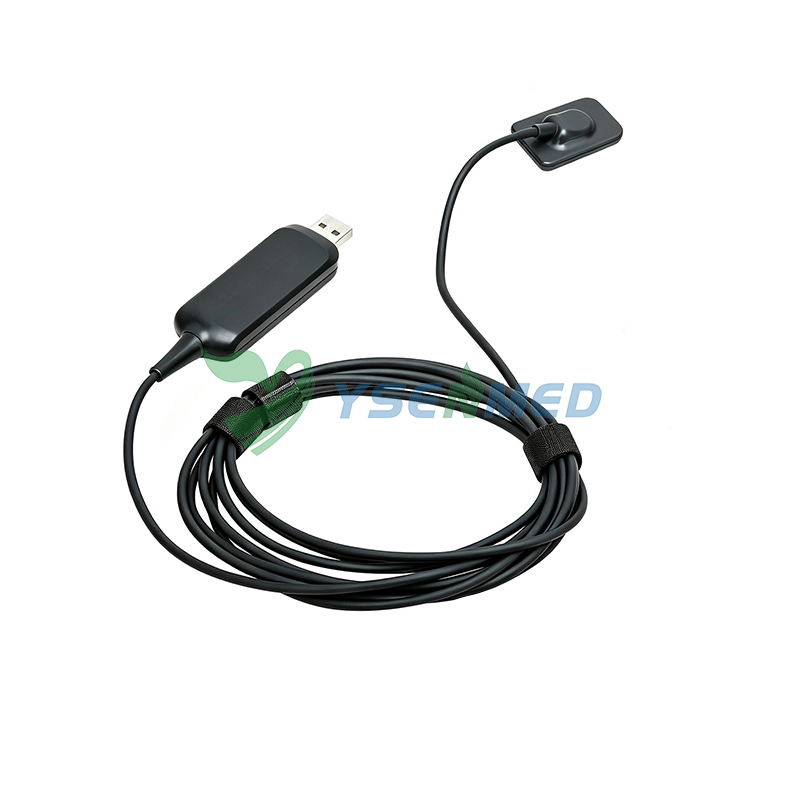

    YSDEN-DR530/YSDEN-DR550 Intraoral Sensor                   5” Display System
    Sensor Features
    * APS CMOS sensor technology
    * Smart connection technology
    * Suitable for all kinds of X ray machines
    * Direct evaporation scintillator technology
    * Ultra high sensitivity USB 2.0 interface direct connection
    * Thin design, smooth angle, thumb position, humanized design
    * Protection level IP68

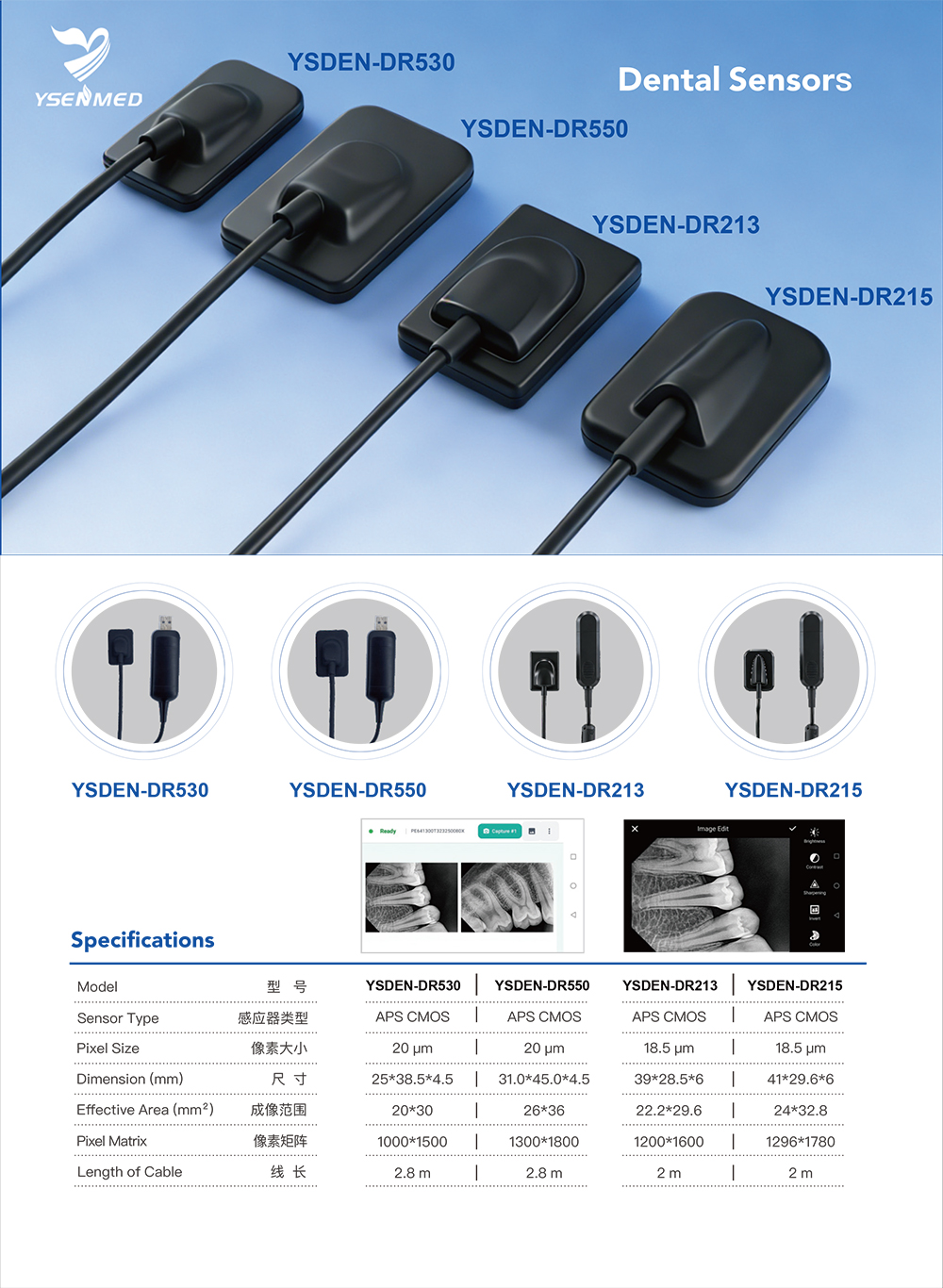

    Sensor Specifications
    TYPE YSDEN-DR530 YSDEN-DR550
    Mechanical
    Dimension(mm³) 25.0×38.5×4.5 31.0×40.0×4.5
    Effective imaging
    area (mm²) 20×30 26×36
    Pixel Matrix (1.5M)1000×1500 (2.34M)1300×1800
    Option color
    Sensor type APS CMOS
    Scintillator type DIRECT-GROWTH CESIUM IODIDE
    Cord length(m) Standard 3m, Optional 5m
    Pixel size(μm) 20
    Spatial resolution
    (Ip/mm) In theory:25 Ip/mm
    Actual:14-16 Ip/mm(High sensitivity) 18-20 Ip/mm( high resolution)
    Gray scale 16bits,65535
    Exposure mode SMART AED mode
    Protective grade IP68 for Soak disinfection
    Accessory function Support the Twain Protocol
    Operating System Windows 7 and above,32/64bit

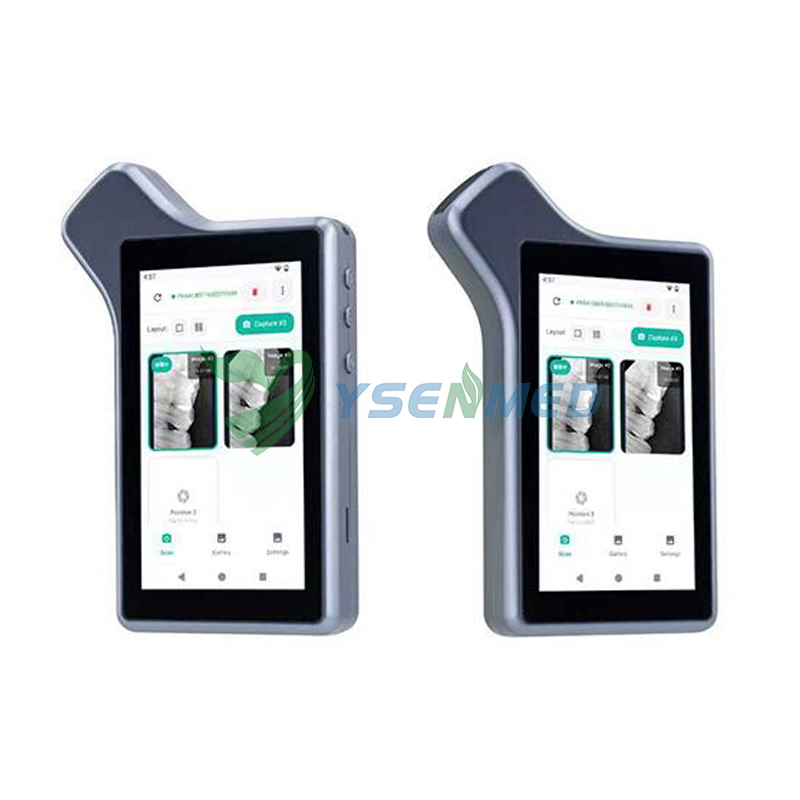

    Display System
    Screen Size: 5”
    Resolution: 720*1280
    Memory: 3GB
    Storage: 32GB (support TF card storage extent, max. 256GB)
    Input: 5V1A
