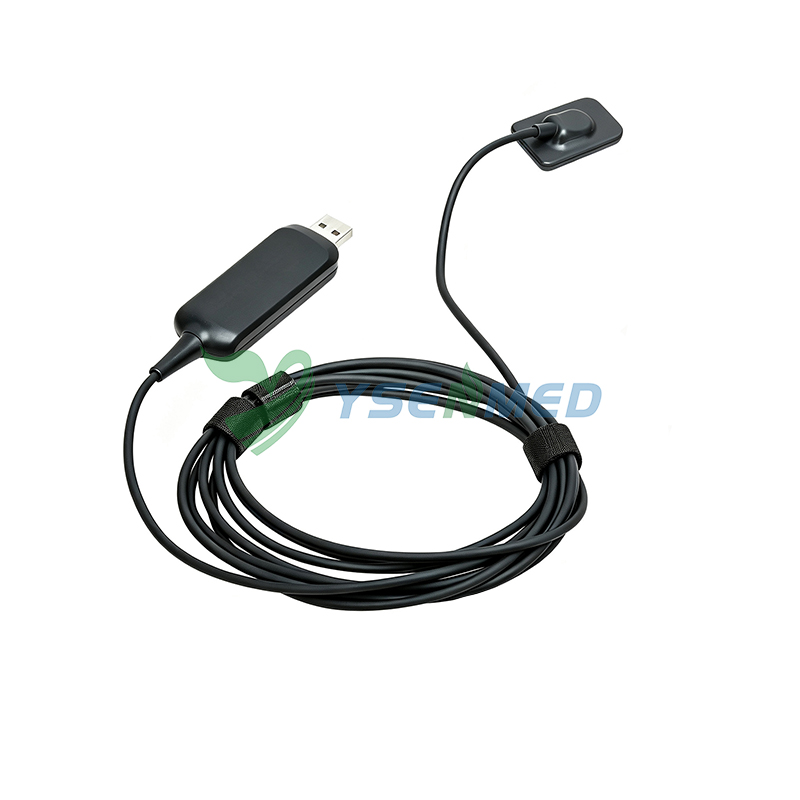

YSDEN-DR530/YSDEN-DR550 Portable Intraoral Imaging System
Sensor Features
* APS CMOS sensor technology
* Smart connection technology
* Suitable for all kinds of X ray machines
* Direct evaporation scintillator technology
* Ultra high sensitivity USB 2.0 interface direct connection
* Thin design, smooth angle, thumb position, humanized design
* Protection level IP68

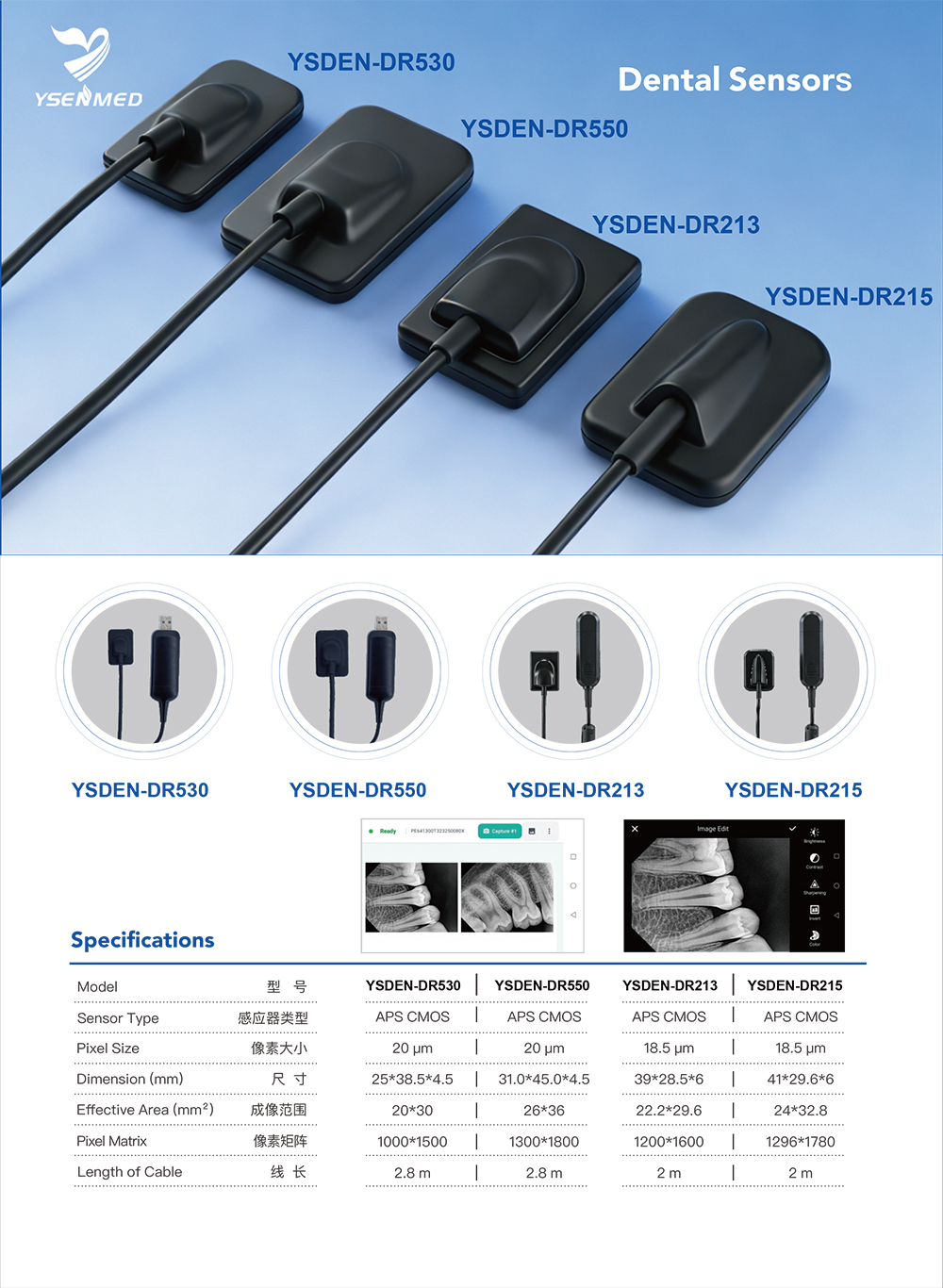

Sensor Specifications
TYPE YSDEN-DR530 YSDEN-DR550
Mechanical
Dimension(mm³) 25.0×38.5×4.5 31.0×40.0×4.5
Effective imaging
area (mm²) 20×30 26×36
Pixel Matrix (1.5M)1000×1500 (2.34M)1300×1800
Option color
Sensor type APS CMOS
Scintillator type DIRECT-GROWTH CESIUM IODIDE
Cord length(m) Standard 3m, Optional 5m
Pixel size(μm) 20
Spatial resolution
(Ip/mm) In theory:25 Ip/mm
Actual:14-16 Ip/mm(High sensitivity) 18-20 Ip/mm( high resolution)
Gray scale 16bits,65535
Exposure mode SMART AED mode
Protective grade IP68 for Soak disinfection
Accessory function Support the Twain Protocol
Operating System Windows 7 and above,32/64bit

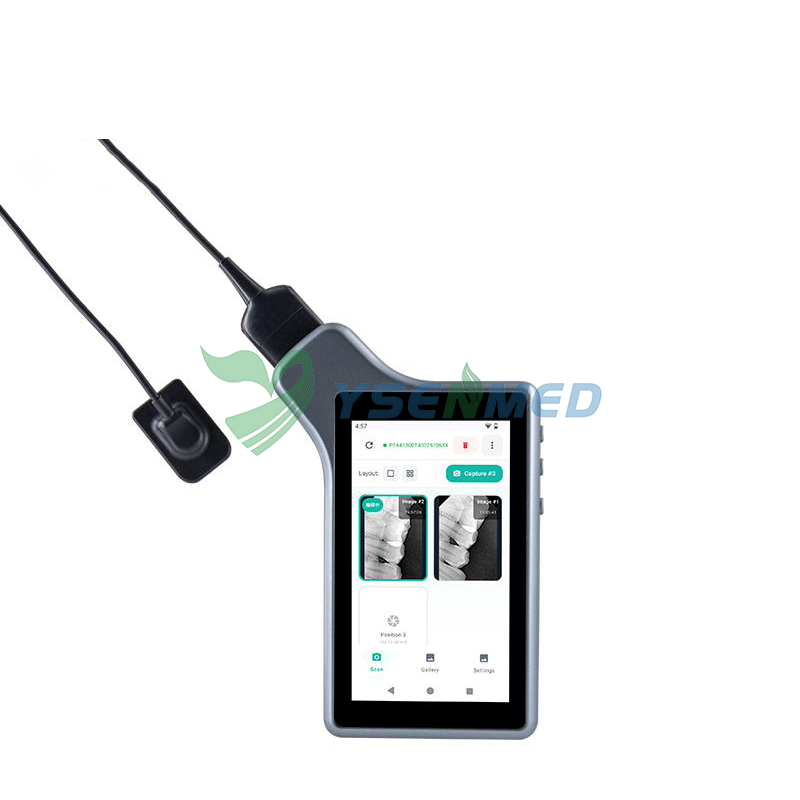

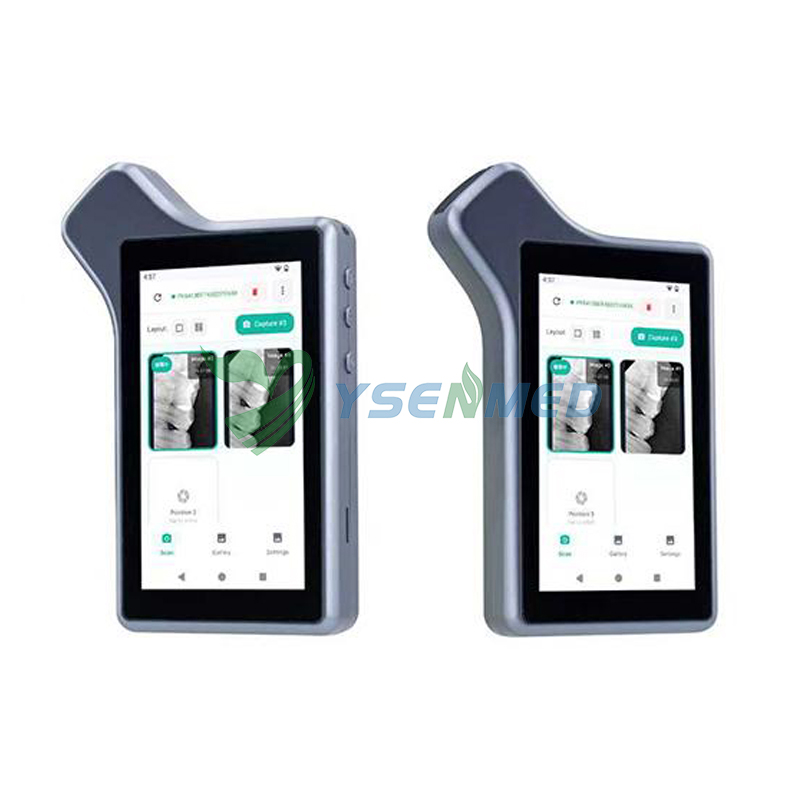

Display System
Screen Size: 5”
Resolution: 720*1280
Memory: 3GB
Storage: 32GB (support TF card storage extent, max. 256GB)
Input: 5V1A
