Medical Equipment Anesthesia Machine YSAV8832

Model: YSAV8832
  • ModelYSAV8832
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAir/Sea
  • -
    +
    Categories:Anesthesia Machines
    Share:
    Description Get Price Review

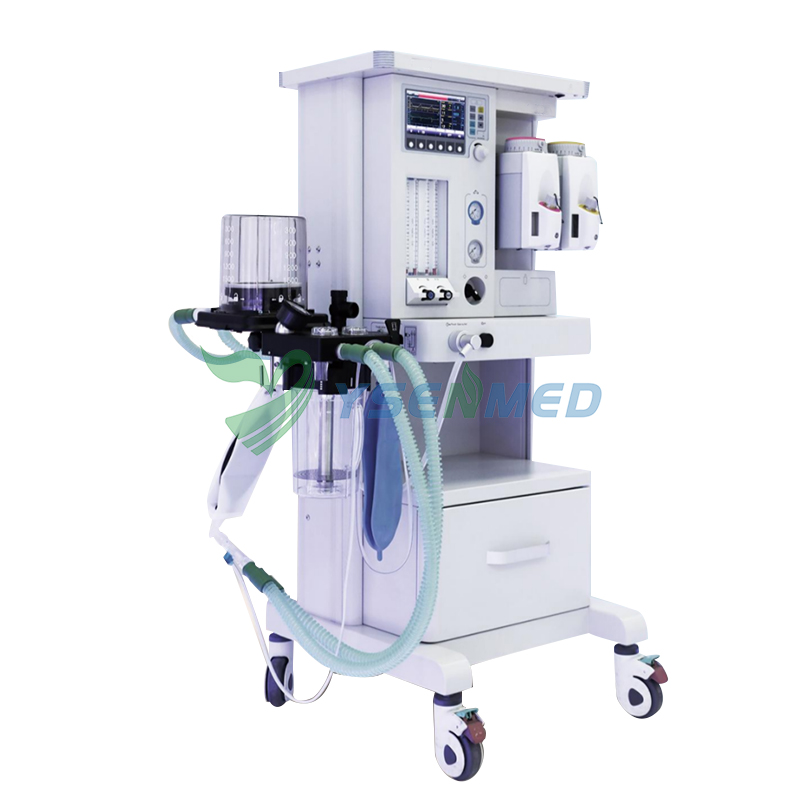

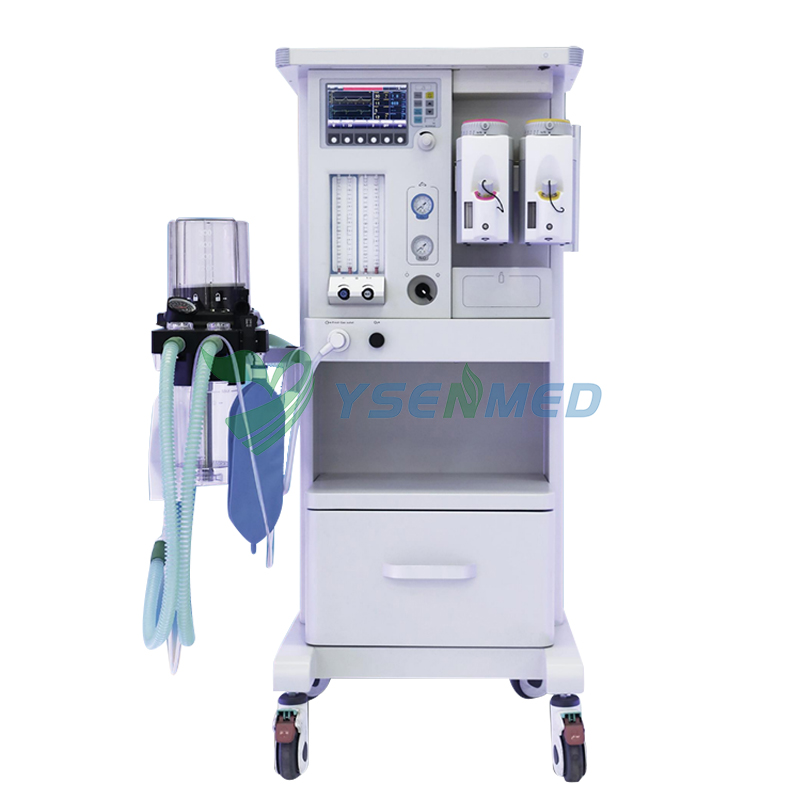

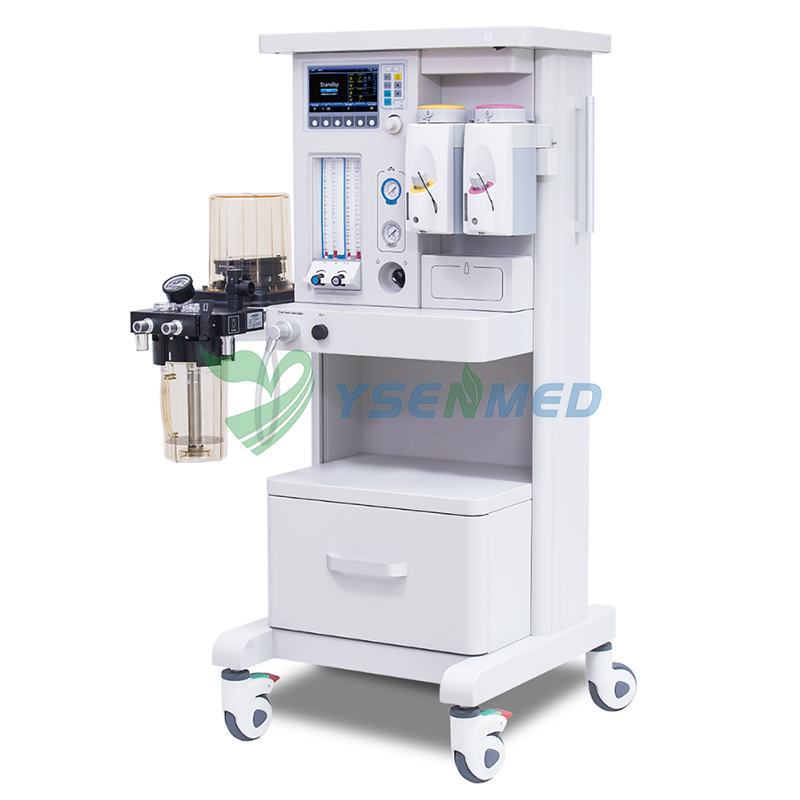

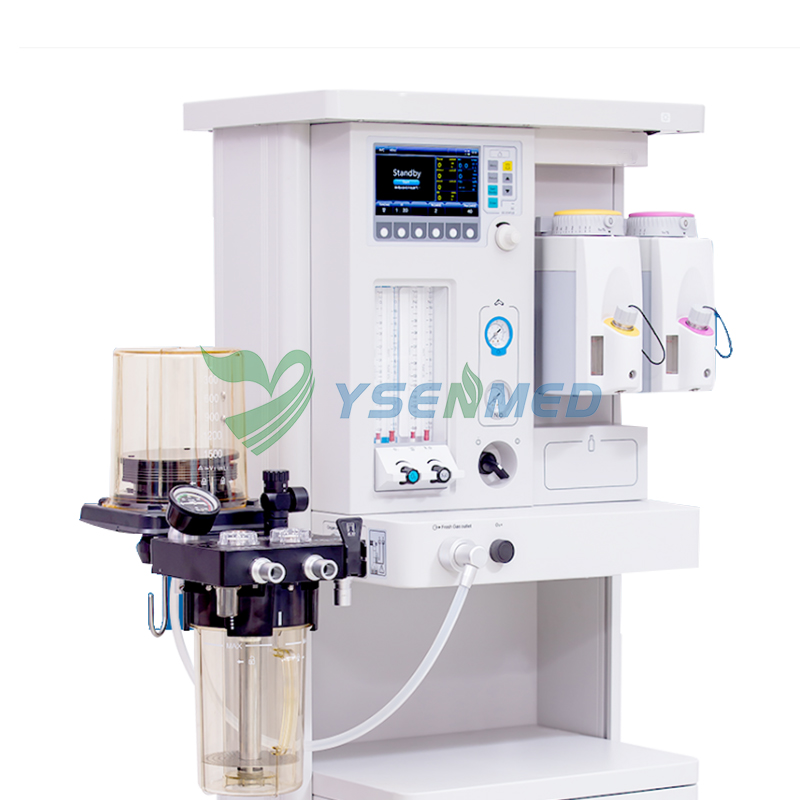

    Trolley-mounted Anesthesia Workstation/
    Medical Equipment Anesthesia Machine


    Model:YSAV8832
    YSAV8832 anaesthesia machine is safe and stable. The minimum tidal volume can be controlled at 20ml, so different patients can be satisfied. PEEP function can reduce inspiratory work for patients and improve man-machine synchronization. When the oxygen battery falls off or fails, an alarm will be issued to ensure the safety of the equipment in clinical use.
    Patient Type
    Adult, child
    Ventilation Mode
    A/C, SIMV, Standby, MAN
    Main Setting Parameters
    Tidal volume: 0, 20~1500ml
    Respiratory rate: 0,1~100 bpm
    Breathing ratio: 1:10~10:1
    Inspiratory time: 0.5~5.0S
    Pressure trigger: 0~20cmH2O
    Flow trigger: 0~20L/min
    PEEP(optional): OFF, 4~30 cmH2O
    SIMV respiratory rate: 0, 4~20 bpm
    Main Monitoring Parameters
    Inspiratory tidal volume: 20~1500 mL
    Expiratory tidal volume: 20~1500 mL
    Minute ventilation: 0~60 L/min
    Respiratory rate: 0~100 bpm
    FiO2: 18vol%~100vol%
    PEEP: 0~70 cmH2O
    Basic Parameters
    Air Source: O2, N2O
    Waveforms: Pressure-Time, Flow rate-Time
    Evaporators: Enflurane, lsoflurane, Sevoflurane, Halothane
    Low Battery alarm: ≥15min
    Run out of battery alarm: ≥3min
    Alarm mute timing: ≤120S
    Function of automatic compensation of temperature, pressure and flow rate
    Optional dual vaporizer or original imported evaporator
    Anesthesia gas absorption system AGSS (optional)
