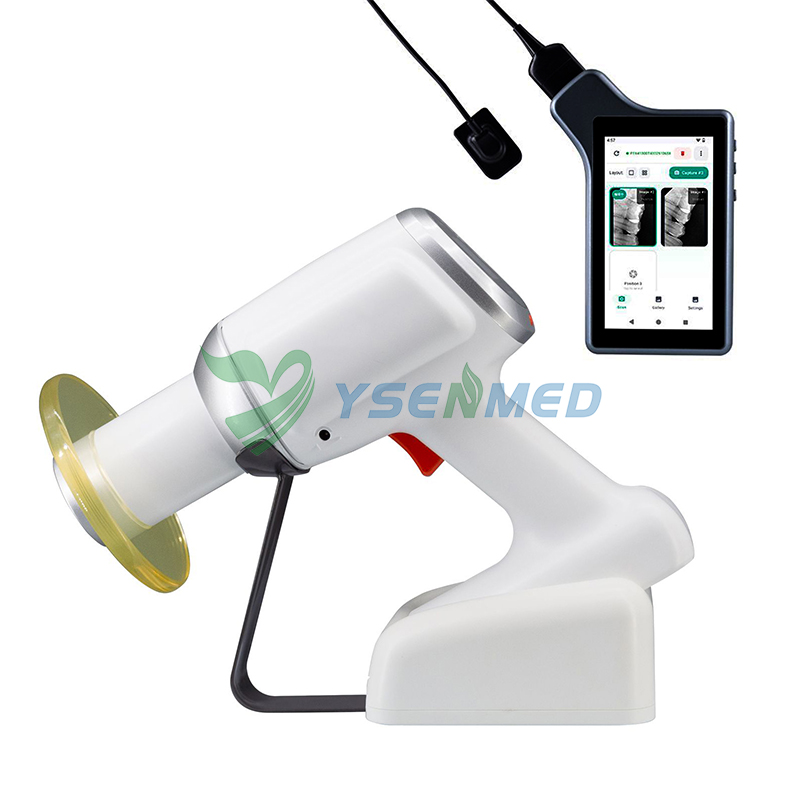

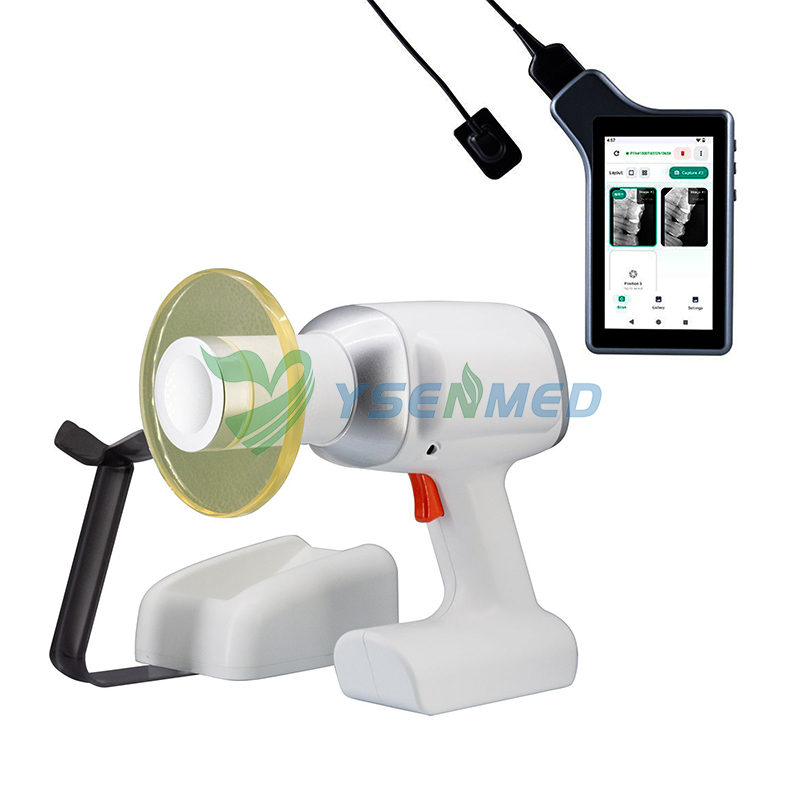

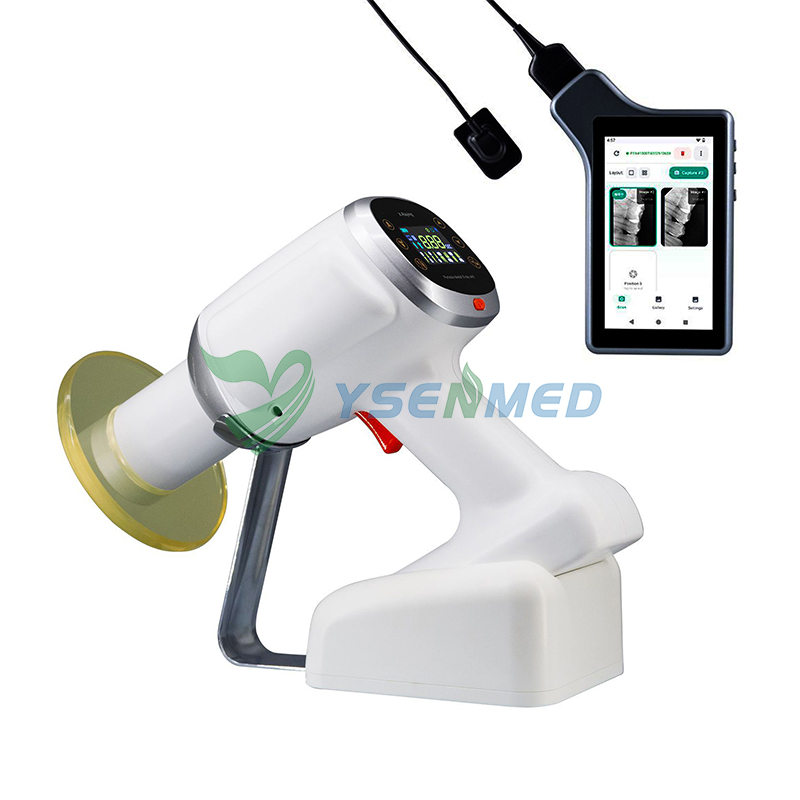

Medical Digital Dental X-ray System
(YSDEN-R500 + YSDEN-DR530/YSDEN-DR550)
YSDEN-R500 Dental X-ray YSDEN-DR550 Intraoral Sensor 5” Display System
X-ray Features
* The motherboard uses semiconductor components of international famous brands such as Samsung of Korea, Rubycon of Japan, KIA and HTC, with more stable performance.
* Small shape, light weight, easy to carry and can take pictures with one hand.
* Microcomputer IC program, high control precision, simple operation, one-key setting before taking pictures.
* High power battery, constant discharge, could make continuous shooting 200 times when fully charged.
* Multiple imaging methods of film, sensor and scanner can be selected arbitrarily.
* Micro-focus tube, the focal size is 0.4mm, the radiation is concentrated, the scattering ray is less, and the image is more clear.
* Compared with ordinary X-ray machines, the DC high-frequency portable X-ray machine is free from the unstable interference of external AC power, the output ray is stable when shooting, and the image is much better.
X-ray Specifications
Tube voltage: 60KV
Tube current: 2.0 Ma
Exposure time: 0.1-2.0 s
Frequency: 30KHz
Rate power: 120VA
Distance from the skin to cone: 150mm
Tube focus: 0.4mm
Battery: DC1550mAh
Charger input voltage: AC100V-240V
Output voltage: DC14.8-16.8V
Gross weight: 4.0kg
Package size: 422mm×195mm×370mm
Sensor Features
* APS CMOS sensor technology
* Smart connection technology
* Suitable for all kinds of X ray machines
* Direct evaporation scintillator technology
* Ultra high sensitivity USB 2.0 interface direct connection
* Thin design, smooth angle, thumb position, humanized design
* Protection level IP68
Sensor Specifications
TYPE YSDEN-DR530 YSDEN-DR550
Mechanical
Dimension(mm³) 25.0×38.5×4.5 31.0×40.0×4.5
Effective imaging
area (mm²) 20×30 26×36
Pixel Matrix (1.5M)1000×1500 (2.34M)1300×1800
Option color
Sensor type APS CMOS
Scintillator type DIRECT-GROWTH CESIUM IODIDE
Cord length(m) Standard 3m, Optional 5m
Pixel size(μm) 20
Spatial resolution
(Ip/mm) In theory:25 Ip/mm
Actual:14-16 Ip/mm(High sensitivity) 18-20 Ip/mm( high resolution)
Gray scale 16bits,65535
Exposure mode SMART AED mode
Protective grade IP68 for Soak disinfection
Accessory function Support the Twain Protocol
Operating System Windows 7 and above,32/64bit
Display System
Screen Size: 5”
Resolution: 720*1280
Memory: 3GB
Storage: 32GB (support TF card storage extent, max. 256GB)
